GCP Compute Engine の e2-micro で Node-RED に最低限の構築するメモ

GCP Compute Engine の e2-micro で Node-RED に最低限の構築するメモです。

Compute Engine の無料枠 2022/9 現在

2022/09 現在の GCP 無料インスタンスが e2-micro なので、ここをターゲットにやってみます。e2-micro は価格としてはお安いほうなので、有料ですぐ削除する前提でサッと試されるぶんには、お財布にも優しいかと思います。

Compute Engine インスタンス 無料枠の情報

1 つの非プリエンプティブル e2-micro VM インスタンス(1 か月あたり)。次の米国リージョンのいずれかで利用できます。
オレゴン: us-west1
アイオワ: us-central1
サウスカロライナ: us-east1


無料枠のご注意

なお実際に無料枠で使えるかどうかは、みなさんのお使いになられている状況によって違います。ご自分で無料枠として試される場合は、無料枠の定義をご確認の上、自己責任でお試しください。

Compute Engine インスタンスを作成


Compute Engine のページにアクセスして、インスタンスを作成ボタンをクリックします。

インスタンスの設定


  • 名前
    • 自分で考えた命名(例:node-red-instance01)
  • リージョン
    • 今回はオレゴンを選びました
  • シリーズ
    • E2
  • マシンタイプ
    • e2-micro

ネットワークタグの設定


詳細オプションが閉じている場合があるので開きます。


ネットワークタグを以下に設定します。

  • ネットワーク タグ
    • node-red

ネットワーク タグ node-red は、この後、ファイアウォール作成時に関連付く設定です。

作成

作成ボタンをクリックします。


作成を待ちます。


作成されました。

ブラウザウィンドウで SSH を開く

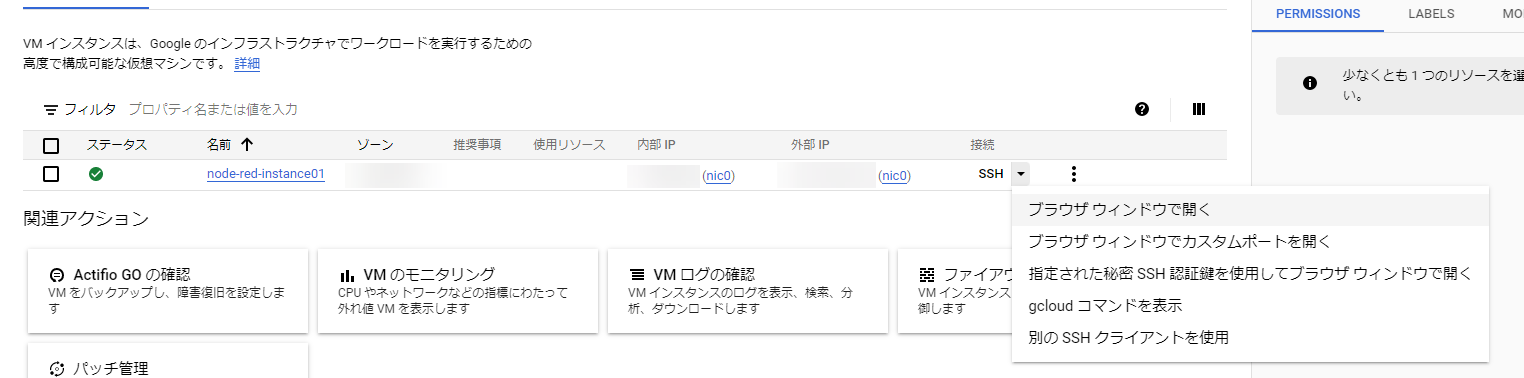

インスタンスができたら、ブラウザウィンドウで SSH を開きます。


SSH にアクセスできました。Linux で Debian のサーバーが起動しています。

Node-RED インストール

Raspberry Piで実行する : Node-RED日本ユーザ会

こちらを参考に、

bash <(curl -sL https://raw.githubusercontent.com/node-red/linux-installers/master/deb/update-nodejs-and-nodered)

アップデートコマンドを実行します。

  • Are you really sure you want to do this ? [y/N] ?
    • y
  • Would you like to install the Pi-specific nodes ? [y/N] ?
    • N

途中、聞かれるものはこのようにすすめます。「Would you like to install the Pi-specific nodes」は Raspberry Pi の特別設定をp反映するかどうかなので、仮に間違えても大枠としては影響ないです。


インストールが進みます。

All done.
You can now start Node-RED with the command  node-red-start
  or using the icon under   Menu / Programming / Node-RED
Then point your browser to localhost:1880 or http://{your_pi_ip-address}:1880

Started :  Wed Sep 28 02:59:21 UTC 2022
Finished:  Wed Sep 28 02:59:50 UTC 2022

You may want to run   node-red admin init
to configure your initial options and settings.

これでインストールできました。

対話的な設定ファイル作成ツールで設定

対話的な設定ファイル作成ツール node-red admin init コマンドでどんなファイルが書き出されるか見てみたメモ – 1ft-seabass.jp.MEMO

こちらを参考に対話的なファイル設定作成を行います。

node-red admin init

を実行します。対話的に進めていきます。

以下、対応ログです。

Node-RED Settings File initialisation
=====================================
This tool will help you create a Node-RED settings file.

V Settings file · /home/tnk_seigo/.node-red/settings.js
V That file already exists. Are you sure you want to overwrite it? · Yes

User Security
=============
V Do you want to setup user security? · Yes
V Username ·
V Password · ****************
V User permissions · full access
V Add another user? · No

Projects
========
The Projects feature allows you to version control your flow using a local git repository.

V Do you want to enable the Projects feature? · No

Flow File settings
==================
V Enter a name for your flows file · flows.json
V Provide a passphrase to encrypt your credentials file ·

Editor settings
===============
V Select a theme for the editor. To use any theme other than "default", you will need to install @node-red-contrib-themes/theme-collection in your Node-RED user directory. · default

V Select the text editor component to use in the Node-RED Editor · monaco (default)

Node settings
=============
V Allow Function nodes to load external modules? (functionExternalModules) · Yes

各項目、このように設定しました。

特に大事なのは User Securityのところで、Username と Password を設定するとエディタへのログインパスワードが設定できます。

ファイアウォールルールの設定


ポート 1880 にアクセスするためにコンソール上部の検索からファイアウォールを検索します。

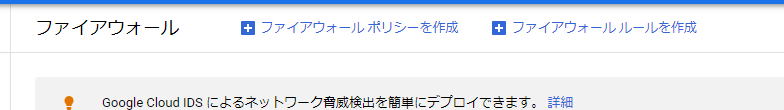

ファイアウォールルールを作成ボタンをクリックします。


以下に設定します。

  • 名前
    • allow-node-red
  • トラフィックの方向
    • 上り
  • 一致したときのアクション
    • 許可


  • 指定されたターゲットタグ
    • node-red
  • ソースフィルタ
    • IPv4 範囲
    • 送信元 IPv4 範囲
      • 0.0.0.0/0
  • プロトコルとポート
    • 指定したプロトコルとポート
    • TCP をチェック
    • 1880

このように設定します。送信元 IPv4 範囲は 0.0.0.0/0 です。私はうっかり 0.0.0.0 にしてしまって、アクセスできない変なハマり方をしたのでご注意ください!

作成ボタンをクリックして設定します。

Node-RED 起動

node-red-start

で Node-RED 起動します。

(省略)
28 Sep 03:01:26 - [info] Server now running at http://127.0.0.1:1880/
28 Sep 03:01:26 - [warn] Encrypted credentials not found
28 Sep 03:01:26 - [info] Starting flows
28 Sep 03:01:26 - [info] Started flows

このようにログが出て起動します。

ブラウザでアクセスしてみる


URL は Compute Engine の外部 IP をコピーします。

これに :1880 をつけてアクセスします。

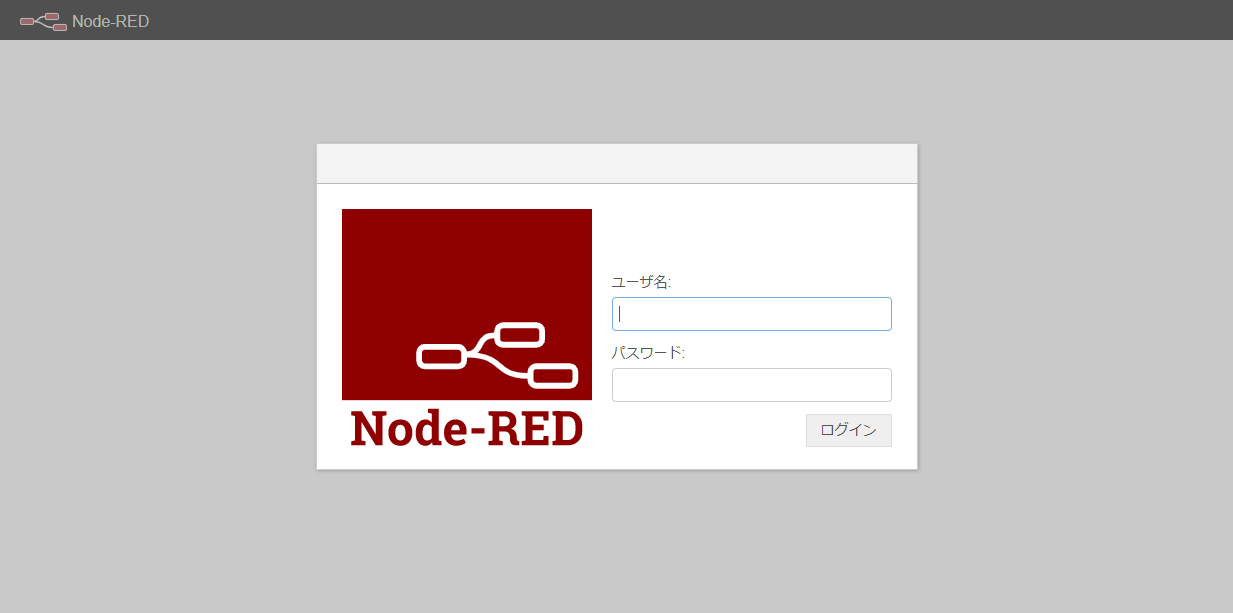

無事アクセスできました。先ほど設定作成ツールで User Securityのところで、Username と Password を設定するとエディタへのログインパスワードでログインしてみます。

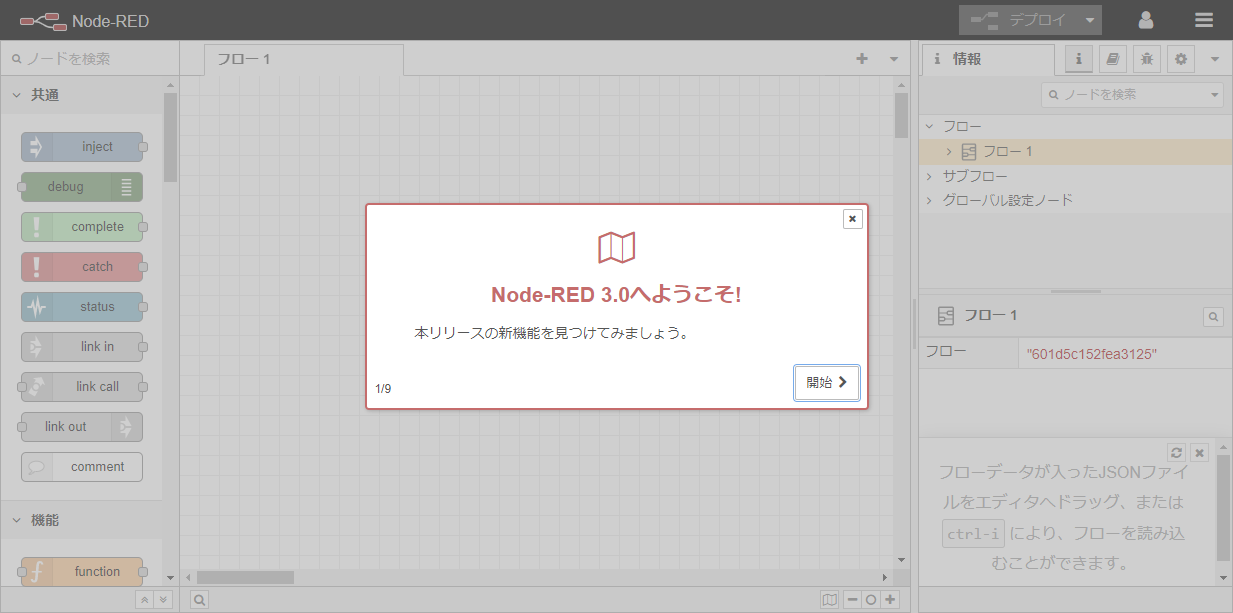

無事ログインできました!

これで最低限の準備ができました!

自動起動の設定

今回は一度だけの起動です。インスタンスを停止したり再起動しても Node-RED が起動している自動起動を ON にしましょう。

ターミナルで、

sudo systemctl enable nodered.service

こちらのコマンドを入力します。これで設定は完了です。ちなみにオフにする場合は

sudo systemctl disable nodered.service

にします。

自動起動の確認

sudo systemctl status nodered.service

のコマンドを入力します。

● nodered.service - Node-RED graphical event wiring tool
     Loaded: loaded (/lib/systemd/system/nodered.service; enabled; vendor preset: enabled)
     Active: inactive (dead)
       Docs: http://nodered.org/docs/hardware/raspberrypi.html

と確認出来たら、

sudo reboot

で再起動をして、しばらく待って、先ほどアクセス出来た URL にアクセスしてみましょう。


無事、アクセスできて、自動起動の設定も成功です!

再起動時に IP が変わらないようにする設定

通常、インスタンスを停止→開始で再起動時に IP が変わってしまうので、固定したい場合は

エフェメラル外部 IP アドレスを昇格させる

こちらの記事を参考に、設定します。

なお、この対応には有料になります。くわしくは 仮想マシン(VM)の料金の外部 IP アドレス料金をみてみてください。2022/10 現在、$0.004/時 なので月で 300 円くらいかかるようです。

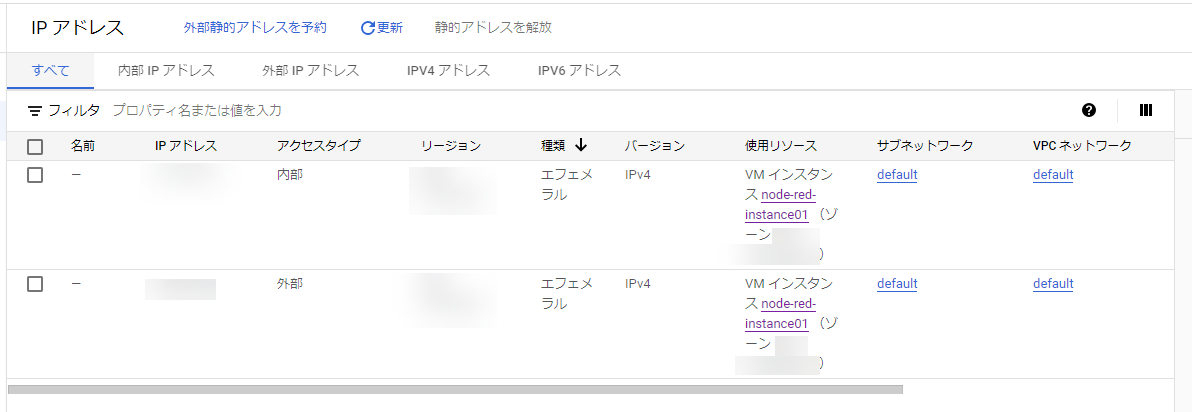

今回のインスタンスで使われている IP アドレスのアクセスタイプ外部を探します。


予約ボタンをクリックします。

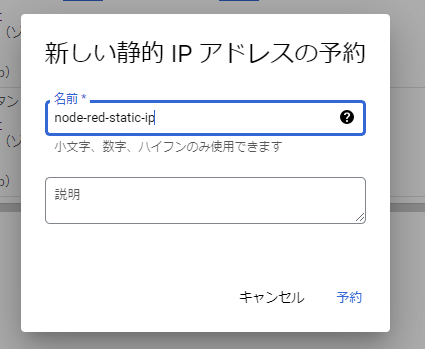

node-red-static-ip として予約ボタンをクリックします。


アクセスタイプが外部の設定の種類が静的になって固定 IP 化されます。

これでインスタンスを停止→開始で再起動しても IP アドレスが変わらず固定の IP でアクセスできます。
